Level measurement in a stripping column

Level measurement in a stripping column

Share:


Level measurement in a stripping column



Stripping column for landfill leachate

Level measurement in a stripping column

Level measurement in a stripping column


Process data

Measuring task
Level measurement
Measuring point
Reactor
Measuring range up to
0 ... 1 m
Medium
Landfill leachate
Process temperature
+15 … +45 °C
Process pressure
0 … +0.5 bar
Special challenges
Aggressive leachate

Application

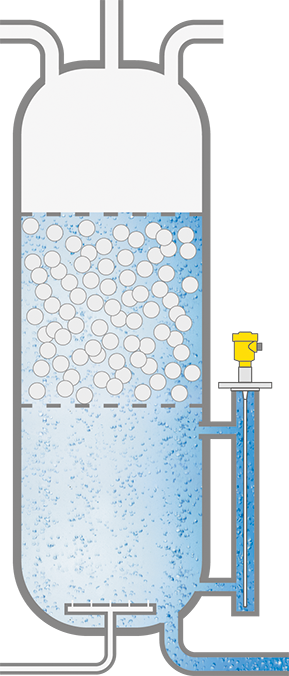

In the stripping column process, the nitrogen and carbon compounds are decomposed by various microorganisms. Special carrier materials are packed in the central part of the reactor, which improve the biochemical reaction processes. To ensure an optimal operating point inside the stripping column, an exact level measurement at the base of the column is required. Because the surface of the medium in the reactor is very turbulent due to air flowing in from below, the level measurement has to be carried out in a bypass tube.

Your benefit

Reliable
Reliable measurement despite joints and deposits in the bypass tube
Cost effective
Precise measurement for efficient operation of the reactor
User friendly
Simple installation and setup
